A 2-dimensional Block bounded by 4 Edges. More...

#include <Block.hpp>

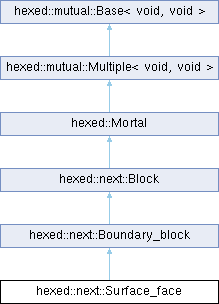

Inheritance diagram for hexed::next::Surface_face:

Public Member Functions
	Surface_face (std::array< Vertex *, 4 >, const Basis &)
	Constructs a `Surface_face` that referes to existing vertices.

Edge &	edge (int i)
	Access the `i`th edge.

const Edge &	edge (int i) const

std::vector< Element_shape * >	dependent_elements () override
	Obtains all the `Element_shape`s whose `point()` depends on `this`

std::vector< int >	element_coords (std::vector< int >) const override
	Transforms node coordinates from the space of the `Block` to its `Element_shape`

std::vector< Vertex * >	vertices () override

void	reset () override
	sets `interior()` to minimize the Laplacian.

void	set_points (Array< double > points) override
	Sets the interior, edge, and vertex points to `points`.

Public Member Functions inherited from hexed::next::Boundary_block
	Boundary_block (int n_dim, const Basis &basis)

const Basis &	basis () const

bool	alive () const
	`true` iff `this` currently has an `Element_shape` referencing it.

void	pair (mutual::Base< Element_shape, Boundary_block > &elem)
	sets `elem` to point to `this`

Element_shape *	element ()
	Get the element `this` is `pair()`d with (`nullptr` if not paired).

const Element_shape *	element () const

Array< double >	interior ()
	A modifiable view of the interior points.

Public Member Functions inherited from hexed::next::Block
	Block (int n_dim, int row_size)

int	n_dim () const
	number of topological dimensions.

int	row_size () const
	number nodes along each dimension

Mat< 3 >	point (const std::vector< int > &node_coords, Int recursion_depth=0) const
	Obtains the node with array indices specified by `node_coords`.

Mat< 3 >	point (int i_point, Int recursion_depth=0) const
	Obtains the node with flat index `i_point`

virtual Array< double >	points () const
	Obtains all the nodes as a multidimensional array.

void	visualize (std::string format, std::string file_name, double time=0.) const
	Visualizes the nodes of a single `Block`.

Public Member Functions inherited from hexed::mutual::Multiple< void, void >
	Multiple (const Multiple &)=delete

	Multiple (Multiple &&that)
	steals all of `that`'s partners, leaving `that` unconnected

Multiple &	operator= (const Multiple &)=delete

Multiple &	operator= (Multiple &&that)
	steals all of `that`'s partners, leaving `that` unconnected

next::Sequence< Base< void, void > & >	partners ()
	provides access to the list of partners

next::Sequence< const Base< void, void > & >	partners () const
	provides access to the list of partners

Public Member Functions inherited from hexed::mutual::Base< void, void >
virtual void *	_mine ()

virtual const void *	_mine () const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Additional Inherited Members
Static Public Member Functions inherited from hexed::next::Block
static void	visualize (std::string format, std::string file_name, next::Sequence< const Block & >, double time=0.)
	Visualizes the nodes of a set of `Block`s.

Public Attributes inherited from hexed::next::Boundary_block
bool	snapping_problem

Static Public Attributes inherited from hexed::next::Block
static constexpr Int	max_recursion_depth = 100

Protected Member Functions inherited from hexed::mutual::Base< void, void >
void	_connect (Base< void, void > &that)
	may be overridden by derived classes to provide partners to data of some arbitrary type `T`

void	_disconnect (Base< void, void > &that)
	mutually disconnects `this` and `that` by calling both of their `_unset()` member functions

Static Protected Member Functions inherited from hexed::mutual::Base< void, void >
static void *	_yours (Base< void, void > &that)
	Accesses the `_mine()` of `that`

static const void *	_yours (const Base< void, void > &that)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Protected Attributes inherited from hexed::next::Boundary_block
Array< double >	_interior
	storage for the interior points

Protected Attributes inherited from hexed::mutual::Base< void, void >
Lock	_lock

Detailed Description

A 2-dimensional Block bounded by 4 Edges.

This class is only used to represent boundary faces, since interior faces are not free (their position is always determined by linear interpolation between the vertices). Only 3D meshes have Surface_faces. point({i, j}) will behave as follows:

if i and j \(\in\) {0, row_size() - 1}, returns the position of one of the vertices.
if i or j \(\in\) {0, row_size() - 1}, returns the position of one the edges.
otherwise returns a point in the interior().

Constructor & Destructor Documentation

◆ Surface_face()

hexed::next::Surface_face::Surface_face	(	std::array< Vertex *, 4 >	verts,
		const Basis &	b )

Constructs a Surface_face that referes to existing vertices.

Vertices are ordered in the standard row-major order. this will construct and own its edges (which can be accessed with Surface_face::edge).

Member Function Documentation

◆ dependent_elements()

std::vector< Element_shape * > hexed::next::Surface_face::dependent_elements ( )

overridevirtual

Obtains all the Element_shapes whose point() depends on this

Implements hexed::next::Boundary_block.

◆ edge()

Edge & hexed::next::Surface_face::edge ( int i )

inline

Access the ith edge.

The order of the edges is \( \{\xi_0 = 0\}, \{\xi_0 = 1\}, \{\xi_1 = 0\}, \{\xi_1 = 1\} \).

◆ element_coords()

std::vector< int > hexed::next::Surface_face::element_coords ( std::vector< int > coords ) const

overridevirtual

Transforms node coordinates from the space of the Block to its Element_shape

That is, element()->point(elemement_coords(coords)) should give the same result as point(coords).

Implements hexed::next::Boundary_block.

◆ reset()

void hexed::next::Surface_face::reset ( )

overridevirtual

sets interior() to minimize the Laplacian.

Specifically, the Laplacian of each physical coordinate as a function of the reference coordinates is minimized in the \( L^2 \) norm.

Implements hexed::next::Boundary_block.

◆ set_points()

void hexed::next::Surface_face::set_points ( Array< double > points )

overridevirtual

Sets the interior, edge, and vertex points to points.

The interior(), as well as any connected Edges and Vertexs will be modified. After calling set_points(p), points() and p should be equal. The points provided as the argument must have the same shape as points().

Implements hexed::next::Boundary_block.

◆ vertices()

std::vector< Vertex * > hexed::next::Surface_face::vertices ( )

overridevirtual

Implements hexed::next::Boundary_block.

The documentation for this class was generated from the following files:

/home/micaiah/Desktop/hexed/include/Block.hpp
/home/micaiah/Desktop/hexed/libhexed/Block.cpp
