hexed::next::Edge Class Reference

A 1-dimensional Block connecting 2 Vertexs. More...

#include <Block.hpp>

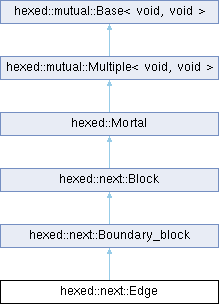

Inheritance diagram for hexed::next::Edge:

Public Member Functions
	Edge (Vertex &vertex0, Vertex &vertex1, const Basis &)
	Constructs an Edge with endpoints vertex0 and vertex1.
Vertex &	vertex (int i_vert)
	access the vertices (index 0 or 1)
const Vertex &	vertex (int i_vert) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
std::vector< Element_shape * >	dependent_elements ()
	Obtains all the Element_shapes whose point() depends on this
std::vector< int >	element_coords (std::vector< int >) const override
	Transforms node coordinates from the space of the Block to its Element_shape
std::vector< Vertex * >	vertices () override
void	reset () override
	sets interior() to linear interpolation between vertices
void	set_points (Array< double > points) override
	Sets the interior, edge, and vertex points to points.
void	glue (Edge &that, int half=no, bool reverse=false)
	Glues the edge to another edge (or half of it).
void	unglue ()
	If this edge is currently glue()d, unglue it.
bool	glued () const
	true iff this is currently glue()d to another edge
std::vector< Element_shape * >	contacted_elements ()
Edge *	glued_to ()
const Edge *	glued_to () const
int	glued_half () const
Public Member Functions inherited from hexed::next::Boundary_block
	Boundary_block (int n_dim, const Basis &basis)
const Basis &	basis () const
bool	alive () const
	true iff this currently has an Element_shape referencing it.
void	pair (mutual::Base< Element_shape, Boundary_block > &elem)
	sets elem to point to this
Element_shape *	element ()
	Get the element this is pair()d with (nullptr if not paired).
const Element_shape *	element () const
Array< double >	interior ()
	A modifiable view of the interior points.
Public Member Functions inherited from hexed::next::Block
	Block (int n_dim, int row_size)
int	n_dim () const
	number of topological dimensions.
int	row_size () const
	number nodes along each dimension
Mat< 3 >	point (const std::vector< int > &node_coords, Int recursion_depth=0) const
	Obtains the node with array indices specified by node_coords.
Mat< 3 >	point (int i_point, Int recursion_depth=0) const
	Obtains the node with flat index i_point
virtual Array< double >	points () const
	Obtains all the nodes as a multidimensional array.
void	visualize (std::string format, std::string file_name, double time=0.) const
	Visualizes the nodes of a single Block.
Public Member Functions inherited from hexed::mutual::Multiple< void, void >
	Multiple (const Multiple &)=delete
	Multiple (Multiple &&that)
	steals all of that's partners, leaving that unconnected
Multiple &	operator= (const Multiple &)=delete
Multiple &	operator= (Multiple &&that)
	steals all of that's partners, leaving that unconnected
next::Sequence< Base< void, void > & >	partners ()
	provides access to the list of partners
next::Sequence< const Base< void, void > & >	partners () const
	provides access to the list of partners
Public Member Functions inherited from hexed::mutual::Base< void, void >
virtual void *	_mine ()
virtual const void *	_mine () const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Public Attributes
Int	snapped_edge
Public Attributes inherited from hexed::next::Boundary_block
bool	snapping_problem

Static Public Attributes
static const int	no = -1
	Used in glue() to indicate that you are not gluing to either half of the target edge.
Static Public Attributes inherited from hexed::next::Block
static constexpr Int	max_recursion_depth = 100

Additional Inherited Members
Static Public Member Functions inherited from hexed::next::Block
static void	visualize (std::string format, std::string file_name, next::Sequence< const Block & >, double time=0.)
	Visualizes the nodes of a set of Blocks.
Protected Member Functions inherited from hexed::mutual::Base< void, void >
void	_connect (Base< void, void > &that)
	may be overridden by derived classes to provide partners to data of some arbitrary type T
void	_disconnect (Base< void, void > &that)
	mutually disconnects this and that by calling both of their _unset() member functions
Static Protected Member Functions inherited from hexed::mutual::Base< void, void >
static void *	_yours (Base< void, void > &that)
	Accesses the _mine() of that
static const void *	_yours (const Base< void, void > &that)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
Protected Attributes inherited from hexed::next::Boundary_block
Array< double >	_interior
	storage for the interior points
Protected Attributes inherited from hexed::mutual::Base< void, void >
Lock	_lock

Detailed Description

A 1-dimensional Block connecting 2 Vertexs.

This class is only used to represent boundary edges, since interior edges are not free (their position is always determined by linear interpolation between the vertices). Both 2D and 3D meshes have Edges, but their role is different. In 3D, boundary Edges form the interfaces between boundary Surface_faces. In 2D, boundary Edges are the boundary faces (or boundary sides might be a better term).

Constructor & Destructor Documentation

Edge()

hexed::next::Edge::Edge	(	Vertex &	vertex0,
		Vertex &	vertex1,
		const Basis &	b )

Constructs an Edge with endpoints vertex0 and vertex1.

point({0}) will return vertex0.point({}) and point({row_size() - 1}) will return vertex1.point({}). Vertex::eat can redirect these to point to different vertices.

Member Function Documentation

dependent_elements()

std::vector< Element_shape * > hexed::next::Edge::dependent_elements ( )

virtual

Obtains all the Element_shapes whose point() depends on this

Implements hexed::next::Boundary_block.

element_coords()

std::vector< int > hexed::next::Edge::element_coords ( std::vector< int > coords ) const

overridevirtual

Transforms node coordinates from the space of the Block to its Element_shape

That is, element()->point(elemement_coords(coords)) should give the same result as point(coords).

Implements hexed::next::Boundary_block.

glue()

void hexed::next::Edge::glue	(	Edge &	that,
		int	half = no,
		bool	reverse = false )

Glues the edge to another edge (or half of it).

Once this is called, the Block::interior() becomes irrelevant, and the Block::points are determine from that as follows:

• If half == no, this->point returns the same as that.point
• If half == 0, the points are interpolated to the first half ( \( \xi \in [0, 0.5] \)) of that.
• If half == 1, the points are interpolated to the second half ( \( \xi \in [0.5, 1] \)) of that.
• Any other values of half are illegal.

If that is destroyed, this edge is no longer glued and Block::point once again respects interior(). Unlike in the case of Vertex::glue, interior() is not updated to match the latest value of point().

reset()

void hexed::next::Edge::reset ( )

overridevirtual

sets interior() to linear interpolation between vertices

Implements hexed::next::Boundary_block.

set_points()

void hexed::next::Edge::set_points ( Array< double > points )

overridevirtual

Sets the interior, edge, and vertex points to points.

The interior(), as well as any connected Edges and Vertexs will be modified. After calling set_points(p), points() and p should be equal. The points provided as the argument must have the same shape as points().

Implements hexed::next::Boundary_block.

vertices()

std::vector< Vertex * > hexed::next::Edge::vertices ( )

overridevirtual

Implements hexed::next::Boundary_block.

---

The documentation for this class was generated from the following files:

• /home/micaiah/Desktop/hexed/include/Block.hpp
• /home/micaiah/Desktop/hexed/libhexed/Block.cpp
