A Block which is part of the mesh boundary. More...

#include <Block.hpp>

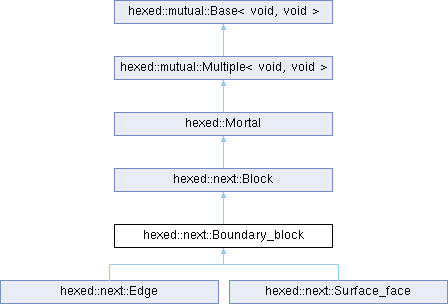

Inheritance diagram for hexed::next::Boundary_block:

Public Member Functions
	Boundary_block (int n_dim, const Basis &basis)

const Basis &	basis () const

bool	alive () const
	`true` iff `this` currently has an `Element_shape` referencing it.

void	pair (mutual::Base< Element_shape, Boundary_block > &elem)
	sets `elem` to point to `this`

Element_shape *	element ()
	Get the element `this` is `pair()`d with (`nullptr` if not paired).

const Element_shape *	element () const

virtual std::vector< Element_shape * >	dependent_elements ()=0
	Obtains all the `Element_shape`s whose `point()` depends on `this`

virtual std::vector< Vertex * >	vertices ()=0

virtual std::vector< int >	element_coords (std::vector< int > coords) const =0
	Transforms node coordinates from the space of the `Block` to its `Element_shape`

virtual void	reset ()=0
	Resets the interior nodes to a minimal interpolation of the boundary nodes.

Array< double >	interior ()
	A modifiable view of the interior points.

virtual void	set_points (Array< double > points)=0
	Sets the interior, edge, and vertex points to `points`.

Public Member Functions inherited from hexed::next::Block
	Block (int n_dim, int row_size)

int	n_dim () const
	number of topological dimensions.

int	row_size () const
	number nodes along each dimension

Mat< 3 >	point (const std::vector< int > &node_coords, Int recursion_depth=0) const
	Obtains the node with array indices specified by `node_coords`.

Mat< 3 >	point (int i_point, Int recursion_depth=0) const
	Obtains the node with flat index `i_point`

virtual Array< double >	points () const
	Obtains all the nodes as a multidimensional array.

void	visualize (std::string format, std::string file_name, double time=0.) const
	Visualizes the nodes of a single `Block`.

Public Member Functions inherited from hexed::mutual::Multiple< void, void >
	Multiple (const Multiple &)=delete

	Multiple (Multiple &&that)
	steals all of `that`'s partners, leaving `that` unconnected

Multiple &	operator= (const Multiple &)=delete

Multiple &	operator= (Multiple &&that)
	steals all of `that`'s partners, leaving `that` unconnected

next::Sequence< Base< void, void > & >	partners ()
	provides access to the list of partners

next::Sequence< const Base< void, void > & >	partners () const
	provides access to the list of partners

Public Member Functions inherited from hexed::mutual::Base< void, void >
virtual void *	_mine ()

virtual const void *	_mine () const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Public Attributes
bool	snapping_problem

Protected Attributes
Array< double >	_interior
	storage for the interior points

Protected Attributes inherited from hexed::mutual::Base< void, void >
Lock	_lock

Additional Inherited Members
Static Public Member Functions inherited from hexed::next::Block
static void	visualize (std::string format, std::string file_name, next::Sequence< const Block & >, double time=0.)
	Visualizes the nodes of a set of `Block`s.

Static Public Attributes inherited from hexed::next::Block
static constexpr Int	max_recursion_depth = 100

Protected Member Functions inherited from hexed::next::Block
virtual Mat< 3 >	_point (const std::vector< int > &node_coords, Int recursion_depth=0) const =0
	Derived classes must override this function to define the nodes.

Protected Member Functions inherited from hexed::mutual::Base< void, void >
void	_connect (Base< void, void > &that)
	may be overridden by derived classes to provide partners to data of some arbitrary type `T`

void	_disconnect (Base< void, void > &that)
	mutually disconnects `this` and `that` by calling both of their `_unset()` member functions

Static Protected Member Functions inherited from hexed::mutual::Base< void, void >
static void *	_yours (Base< void, void > &that)
	Accesses the `_mine()` of `that`

static const void *	_yours (const Base< void, void > &that)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Detailed Description

A Block which is part of the mesh boundary.

The interior nodes of the node array can be freely modified to facilitate surface snapping. The boundary nodes are not accessible as they are owned by lower-dimensional Blocks. We are now close enough to the math that we need to consider the position as a polynomial, so this class also has a Basis.

Member Function Documentation

◆ dependent_elements()

virtual std::vector< Element_shape * > hexed::next::Boundary_block::dependent_elements ( )

pure virtual

Obtains all the Element_shapes whose point() depends on this

Implemented in hexed::next::Edge, and hexed::next::Surface_face.

◆ element()

const Element_shape * hexed::next::Boundary_block::element ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ element_coords()

virtual std::vector< int > hexed::next::Boundary_block::element_coords ( std::vector< int > coords ) const

pure virtual

Transforms node coordinates from the space of the Block to its Element_shape

That is, element()->point(elemement_coords(coords)) should give the same result as point(coords).

Implemented in hexed::next::Edge, and hexed::next::Surface_face.

◆ interior()

Array< double > hexed::next::Boundary_block::interior ( )

inline

A modifiable view of the interior points.

layout: ([i_row \(\in\) [0, row_size() - 1)] ([j_row \(\in\) [0, row_size() - 1)] ([j_row \(\in\) [0, row_size() - 1)]))) [i_dim \(\in\) [0, 3)]

Attention: The layout is transposed with respect to Block::points!

◆ reset()

virtual void hexed::next::Boundary_block::reset ( )

pure virtual

Resets the interior nodes to a minimal interpolation of the boundary nodes.

In what sense the interpolation is minimal is to be determined by derived classes. This should be called in the constructor of the derived classes.

Implemented in hexed::next::Edge, and hexed::next::Surface_face.

◆ set_points()

virtual void hexed::next::Boundary_block::set_points ( Array< double > points )

pure virtual

Sets the interior, edge, and vertex points to points.

The interior(), as well as any connected Edges and Vertexs will be modified. After calling set_points(p), points() and p should be equal. The points provided as the argument must have the same shape as points().

Implemented in hexed::next::Edge, and hexed::next::Surface_face.

The documentation for this class was generated from the following files:

/home/micaiah/Desktop/hexed/include/Block.hpp
/home/micaiah/Desktop/hexed/libhexed/Block.cpp
