Represents a surface geometry implicitly for meshing. More...

#include <Surface_geom.hpp>

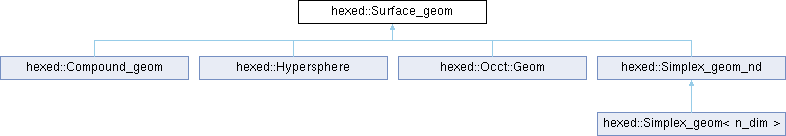

Inheritance diagram for hexed::Surface_geom:

Public Member Functions
virtual Nearest_point< dyn >	nearest_point (Mat<> point, double max_distance=huge, double distance_guess=huge)=0
	Computes the point on the surface which is nearest to `point` within `max_distance`.

virtual std::vector< double >	intersections (Mat<> point0, Mat<> point1, bool high_precision=true)=0
	Computes the set of intersection points between a line and the surface.

virtual next::Sequence< const Geom_edge & >	edges ()
	Returns a list of any geometry edges that require mesh edges to be snapped to them.

virtual next::Sequence< Mat< 3 > >	points ()

Detailed Description

Represents a surface geometry implicitly for meshing.

Abstract class which represents geometry by supporting the operations Surface_geom::nearest_point and Surface_geom::intersections. Either of these operations fully defines the surface geometry and each could, in theory, be defined in terms of the other. However, in practice they are defined separately so that derived classes can implement each in the most efficient and robust way possible. It is the responsibility of the derived class to ensure that they are mutually consistent. The derived class may impose dimensionality restrictions on the arguments. Implementations must be thread-safe.

Member Function Documentation

◆ edges()

virtual next::Sequence< const Geom_edge & > hexed::Surface_geom::edges ( )

inlinevirtual

Returns a list of any geometry edges that require mesh edges to be snapped to them.

Only used in 3D. Default implementation returns an empty sequence, but derived classes may override.

Reimplemented in hexed::brep::Geom_3d, and hexed::Compound_geom.

◆ intersections()

virtual std::vector< double > hexed::Surface_geom::intersections	(	Mat<>	point0,
		Mat<>	point1,
		bool	high_precision = true )

pure virtual

Computes the set of intersection points between a line and the surface.

The line is defined parametrically to be the set of points \( [\text{point0}] + t [\text{point1}] \) for all \( t \in \mathbb{R} \). Returns the (potentially empty) set of \( t \) values where the line intersects the surface.

Deprecated: Newer methods should be based purely on nearest point projections.

Implemented in hexed::brep::Geom_2d, hexed::brep::Geom_3d, hexed::Compound_geom, hexed::Hypersphere, hexed::Simplex_geom< n_dim >, and hexed::Tree_curve_geom.

◆ nearest_point()

virtual Nearest_point< dyn > hexed::Surface_geom::nearest_point	(	Mat<>	point,
		double	max_distance = huge,
		double	distance_guess = huge )

pure virtual

Computes the point on the surface which is nearest to point within max_distance.

If no point is found, returns an empty Nearest_point.

Parameters

point	The point you want to find the nearest point to.
max_distance	Only consider points within `max_distance` of `point`.
distance_guess	If you have some reason to suspect the nearest point is within a certain distance of the input point, you can pass it to this parameter as a hint to possibly improve performance.
