hexed::Ringleb Class Reference

Steady-state solution for Ringleb flow. More...

#include <Spacetime_func.hpp>

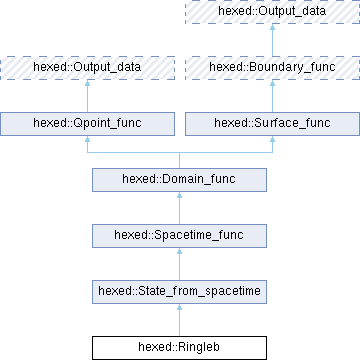

Inheritance diagram for hexed::Ringleb:

Public Member Functions
	Ringleb (double root_tolerance=1e-12, double heat_ratio=1.4)
std::vector< double >	operator() (std::vector< double > pos, double time) const override
Public Member Functions inherited from hexed::State_from_spacetime
int	n_var (int n_dim) const override
	number of output variables when called on n_dim-dimensional input
std::string	variable_name (int n_dim, int i_var) const override
	name of i_varth variable (for plotting) when called on n_dim-dimensional input
Public Member Functions inherited from hexed::Spacetime_func
std::vector< double >	operator() (std::vector< double > pos, double time, std::vector< double > state) const override
Public Member Functions inherited from hexed::Domain_func
std::vector< double >	operator() (Element &, const Basis &, int i_qpoint, double time) const override
std::vector< double >	operator() (std::vector< double > pos, double time, std::vector< double > state, std::vector< double > outward_normal) const override
	normal is surface unit normal vector pointing out of the surface (into the domain).
Public Member Functions inherited from hexed::Surface_func
std::vector< double >	operator() (Boundary_connection &, int i_fqpoint, double time) const override

Detailed Description

Steady-state solution for Ringleb flow.

Ringleb flow is a steady, sub/transonic, isentropic inviscid flow. Exact solution is available as a closed form for position in terms of velocity and stream function. This Spacetime_func gives you state as a function of position using a numerical root finder, so be sure to set the tolerance if you care where you stand on the accuracy/speed tradeoff.

Member Function Documentation

operator()()

std::vector< double > hexed::Ringleb::operator() ( std::vector< double > pos, double time ) const

overridevirtual

Implements hexed::Spacetime_func.

---

The documentation for this class was generated from the following files:

• /home/micaiah/Desktop/hexed/include/Spacetime_func.hpp
• /home/micaiah/Desktop/hexed/libhexed/Spacetime_func.cpp
