hexed::Doublet Class Reference

#include <Spacetime_func.hpp>

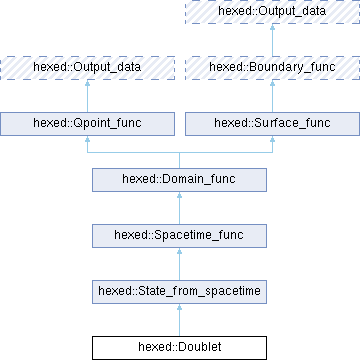

Inheritance diagram for hexed::Doublet:

Public Member Functions
	Doublet (std::vector< double > freestream_state)
std::vector< double >	operator() (std::vector< double > pos, double time) const override
Public Member Functions inherited from hexed::State_from_spacetime
int	n_var (int n_dim) const override
	number of output variables when called on n_dim-dimensional input
std::string	variable_name (int n_dim, int i_var) const override
	name of i_varth variable (for plotting) when called on n_dim-dimensional input
Public Member Functions inherited from hexed::Spacetime_func
std::vector< double >	operator() (std::vector< double > pos, double time, std::vector< double > state) const override
Public Member Functions inherited from hexed::Domain_func
std::vector< double >	operator() (Element &, const Basis &, int i_qpoint, double time) const override
std::vector< double >	operator() (std::vector< double > pos, double time, std::vector< double > state, std::vector< double > outward_normal) const override
	normal is surface unit normal vector pointing out of the surface (into the domain).
Public Member Functions inherited from hexed::Surface_func
std::vector< double >	operator() (Boundary_connection &, int i_fqpoint, double time) const override

Public Attributes
std::array< double, 2 >	location {0., 0.}
double	radius {1.}
double	heat_rat {1.4}

Detailed Description

Velocity field of this flow matches an irrotational, incompressible source/vortex doublet. The circle of radius radius will be a streamline of this flow. Thermodynamic variables are set such that entropy and stagnation enthalpy are constant. flow is isentropic. Flow field is steady, and is an exact solution only in incompressible flow.

Attention

Singularity at location! This class is applicable only to domains which do not include this point.

Member Function Documentation

operator()()

std::vector< double > hexed::Doublet::operator() ( std::vector< double > pos, double time ) const

overridevirtual

Implements hexed::Spacetime_func.

---

The documentation for this class was generated from the following files:

• /home/micaiah/Desktop/hexed/include/Spacetime_func.hpp
• /home/micaiah/Desktop/hexed/libhexed/Spacetime_func.cpp
